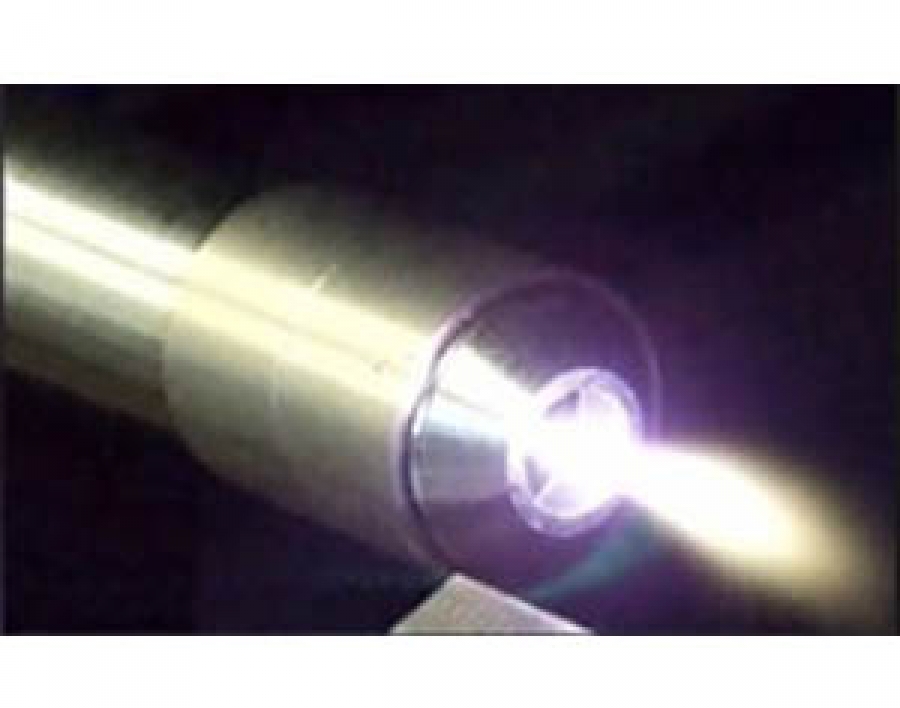

The MWJ30BF Microwave Plasma Jet System is a set that is able to ionize many types of gases passing through the glass tube located in the center of the jet, by applying the microwave frequency power. This system is capable of sustaining the plasma in various conditions and in a fully controlled condition. Special features of this system include: high ion density production, closed-loop power controlling, portable torch, Equipped with mass flow controller.
Technical specifications
MWJ30BF | |
parameter | value |
Frequency | 2.45 GHz |
Power | Up to 250 Watt |
Generator | Magnetron |
Power control | Closed-loop |
Protection | high reflective power and short circuit and power supply-magnetron and torch over temperature protections |
Matching | Includes tuner on torch and coupler |
Display | Equipped with a forward and reflective power display |
Alarm | Error display |
Cooling | Generator cooling with air and torch with water |
Jet connections | Through a 1.5 m coaxial cable and N type connector and a signal cable and trigger cable |
Jet material | Brass and steel |
Plasma length | Depending on the gas flow and type of gas and applied power |
Trigger | Equipped with trigger |
Gas flow control | Can be controlled from 0.1 to 10 liters per minute by MFC |
Gas types | Many types of gas or a combination thereof |
